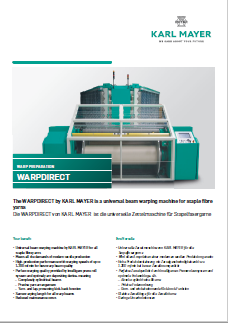

Direct warping machine for spun (WARPDIRECT)

(Computer controlled direct warping machine)

KARL MAYER direct warpers meet highest demands on the manufacture of top-quality warp beams for weaving. Main features of these machines are the high speed (up to 1200 m/min) with uniform yarn tensile forces and the high efficiency during the subsequent processing in beaming. The high user friendliness of the operator interface (Touch Screen) ensures easy handling. KARL MAYER WARPDIRECT operates from the V-creel and H- Creel. Easy to operate and allowing rapid change-over to different yarn parameters, the WARPDIRECT is suitable for nearly all beaming applications.
Manufactured by: KARL MAYER, Germany

FEATURES
BENEFITS
RESOURCES
GET A QUOTE

Technical Details

Working width -1800mm to 2400 mm
Beam diameter – 800mm to 1400 mm
Maximum warping speeds - 1200 m/min
Press roll with direct pressure system and kick-back control
Brakes – hydro pneumatic
Suitable for V creel & H Creel

Applications

Grey fabrics, Shirt fabrics, bed sheeting, Terry towel, Home textiles, Denim fabrics and Bandages

Key Features

Consistent optimal yarn arrangement
Contact pressure control with active kick-back
User-friendly communication system
Minimal maintenance

Direct warping machine suitable for all staple fibre yarns
High-production performance with warping speeds of up to 1,200 m/min for best warp beam quality
Perfect warping quality provided by intelligent press roll system and optimal yarn laying system for the cylindrical beams, precise yarn arrangement, kick-back function avoids yarn breakages or crushing
Smart reed - automatic reed adjustment to the warping parameters
Significantly reduced maintenance costs due to omission of hydraulic aggregate
