Controlling Misplating in 3-Thread Fleece for Improved Knit Fabric Quality

Controlling Misplating in 3-Thread Fleece for Improved Knit Fabric Quality

The global demand for high-quality fleece is skyrocketing. From high-performance activewear and cozy winter jackets to luxury loungewear, consumers expect fleece fabrics to be exceptionally soft, durable, and perfectly structured. For textile manufacturers, meeting this demand while maintaining profit margins is a constant balancing act.

In circular knitting, plating is the technique of feeding two or more yarns to the same needle simultaneously so that one specific yarn always appears on the face of the fabric, and the other remains hidden on the back.

Misplating (often called "grinning" or "flashing") is a structural knitting defect where this precise yarn arrangement fails.

What is misplating in 3-Thread Fleece?

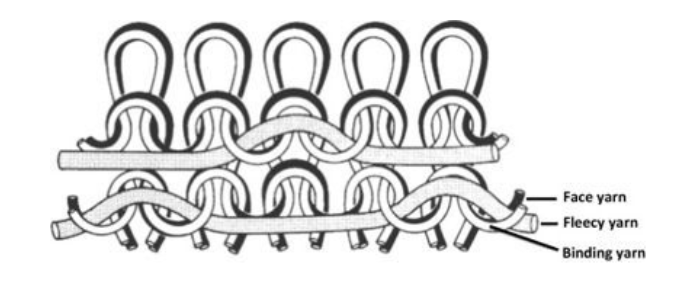

A 3-Thread Fleece (also known as 3-end fleece) is constructed using three distinct yarns at every feeder:

1. Face yarn (ground): Usually a high-quality cotton that forms the smooth, jersey-like face of the fabric
2. Fleece yarn (backing): A thicker, bulky yarn that floats on the technical back of the fabric and is later brushed (napped) to create the soft fleece interior
3. Binding yarn (tie-in): A finer yarn (often polyester) that binds the face and fleece yarns together

In a perfectly plated 3-Thread Fleece, the face yarn completely covers the binding and fleece yarns. misplating occurs when the binding yarn or fleece yarn slips out of position and pushes through to the front of the fabric. Instead of a smooth, uniform face, the hidden yarns become visible, creating tiny specks, shiny spots, or horizontal streaks on the surface.  

The challenges of preventing misplating

Manufacturing 3-Thread Fleece requires immense precision, since misplating a constant operational challenge:

• Complex yarn tensioning: Misplating most often arises from inconsistent tension control. In 3‑Thread Fleece, this is particularly difficult to manage, as the process involves three yarns with distinctly different thicknesses, elastic properties, and material behaviours (such as rigid cotton versus slippery polyester), making it challenging to maintain uniform tension across all three simultaneously

• Feeder positioning: The yarn feeder guide must be positioned with precision. If the feeder guide feeding the face yarn is angled even slightly wrong, it will fail to push the binding yarn to the back of the needle hook

• Late detection: Misplating is often nearly invisible when the fabric is in its raw (greige) state on the knitting machine. It usually only becomes glaringly obvious after the fabric has been dyed or finished, meaning a machine might knit hundreds of defective kilograms before the issue is caught

• Machine speed and vibration: High-speed knitting causes machine vibration, which can cause the yarn to jump or flutter just as the needle latch closes, reversing the yarn positions for a split second

Disadvantages and impact

When misplating occurs, it compromises the fabric in several ways:

• Severe aesthetic flaws
• Cross-dyeing effects  
• Complications during brushing (napping)
• Significant financial losses and wasted raw materials

The secret to premium fleece lies in the intricate 3-Thread structure wherein the machine technology, work practices during knitting process and the quality of yarn plays a vital role in eliminating the misplating issue.

This is where the UNITEX plays a key role

In a highly competitive textile market, the machinery you choose dictates the quality of your product and the health of your bottom line. UNITEX doesn't just build knitting machines; they engineer production solutions. By offering unmatched precision in loop formation, high-speed stability, and incredible versatility, UNITEX UFX 3-Thread fleece circular knitting technology remains a cut above the rest.

• Superior loop formation: It ensures an incredibly consistent loop length on the reverse side of the fabric. This consistency is critical for the brushing and shearing process later, resulting in a plush, even, and highly insulated pile that doesn't pill easily
• Flawless plating: The right combination of advanced sinker and needle cam designs ensure strict separation of yarns, resulting in a pristine and unblemished fabric face
• Advanced yarn tension control: The machine must maintain adequate tension for the consistent fabric density, especially when working with varied synthetic and natural blends (like cotton-polyester or spandex-infused fleece)
